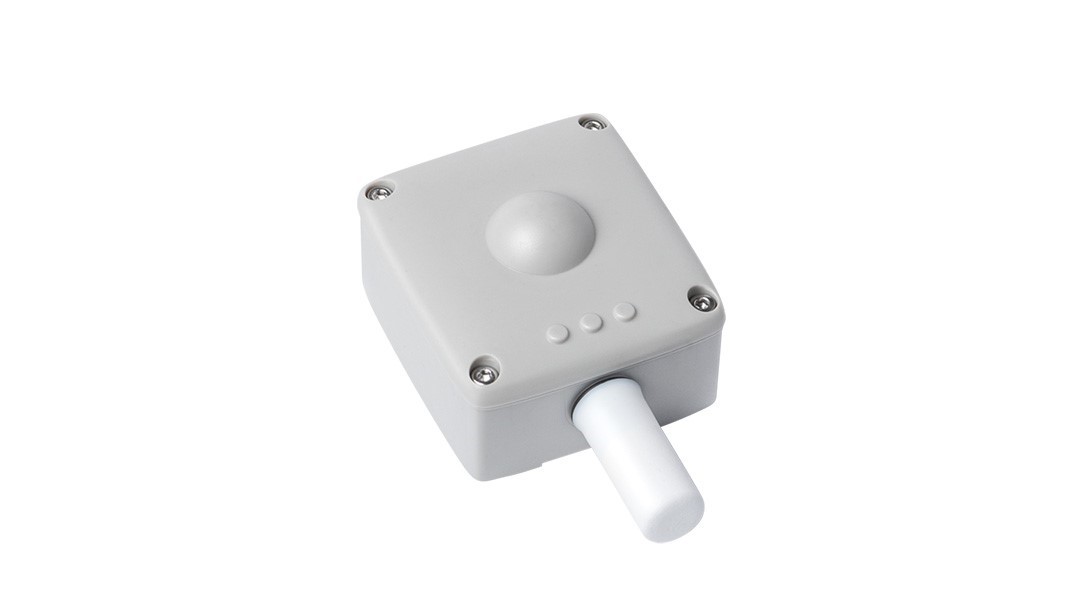

Enginko Outdoor Environmental sensor

  • Device type: sensor
  • Vendor: Enginko
  • Communication technology: LoRaWAN

This IP67 battery powered sensor reads temperature, humidity and pressure and sends collected data over the LoRaWAN network. Ideally suited for a wide range of applications such as weather stations, urban monitoring, air quality, industrial, environmental or farming projects.

  • CPU ARM Cortex M4
  • Class A LoRaWAN 1.0.2, EU868
  • OTAA/ABP activation
  • Temperature -30 ÷ 70 °C (typ. ±0.2 °C within [0 ÷ 65 °C], typ. ±0.5 °C otherwise)
  • Humidity 0% to 100% with following error @25 °C:
    • From 0% to 10% ±3%
    • From 10% to 90% ±2%
    • From 90% to 100% ±3%
  • Pressure 300….1250 hPa (±1 hPa)
  • Embedded antenna
  • Magnetic start-up
  • Primary battery with no harmful substances, replacement possible
  • 5 years life time with SF12 and max Tx power, 48 Uplinks messages per day
  • Transmission @ 868 MHZ, 14 dBm max
  • Remote configuration
  • Storage temperature -30°C ÷ +80 °C
  • Working temperature -40°C ÷ +65 °C



Product Specification
