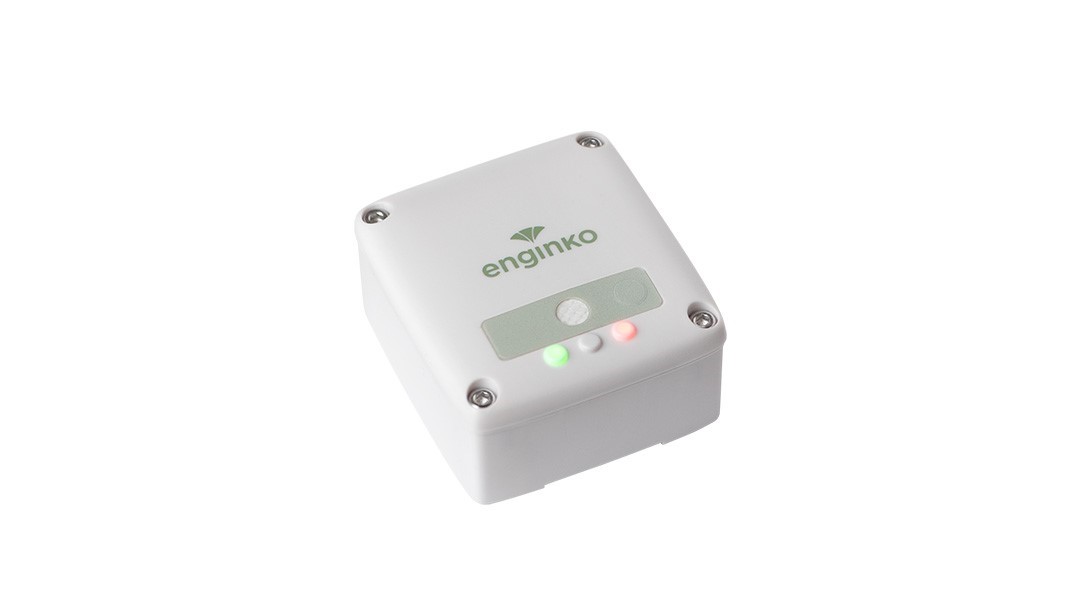

This small-sized device is designed for all situations where it is necessary to keep temperature and humidity under control, from catering to medical and pharmaceutical applications, from museum environments to vaults and wine cellars. The multifunction button and the colored LEDs, combined with the Bluetooth connection, guarantee ease of configuration and control. The device can store up to 3000 sets of historical data records with time stamps, even without connection. Historical data can be retrieved via Bluetooth by LoraTool App or via LoRaWAN network by uplinks.
- CPU ARM Cortex M4
- Class A LoRaWAN 1.0.2, EU868
- OTAA/ABP activation
- Temperature -40 °C ÷ 70 °C (typ. -30 °C ÷ 70 °C ±0.48 °C, -40 °C÷ -30 °C ±0-60 °C) factory calibrated according to ISO 17025:2017
- Humidity 0% to 100% with following error @25 °C:
- From 0% to 10% ±4%
- From 10% to 90% ±2%
- From 90% to 100% ±4%
- Embedded antenna
- Magnetic start-up
- 2xCR123A batteries, replacement possible
- 4 years life time with SF12 and max Tx power, 48 Uplinks messages per day
- Transmission @ 868 MHZ, 14 dBm max.
- Remote configuration
- Storage temperature -40°C ÷ +80 °C
- Working temperature -40°C ÷ +65 °C
Product Specification
