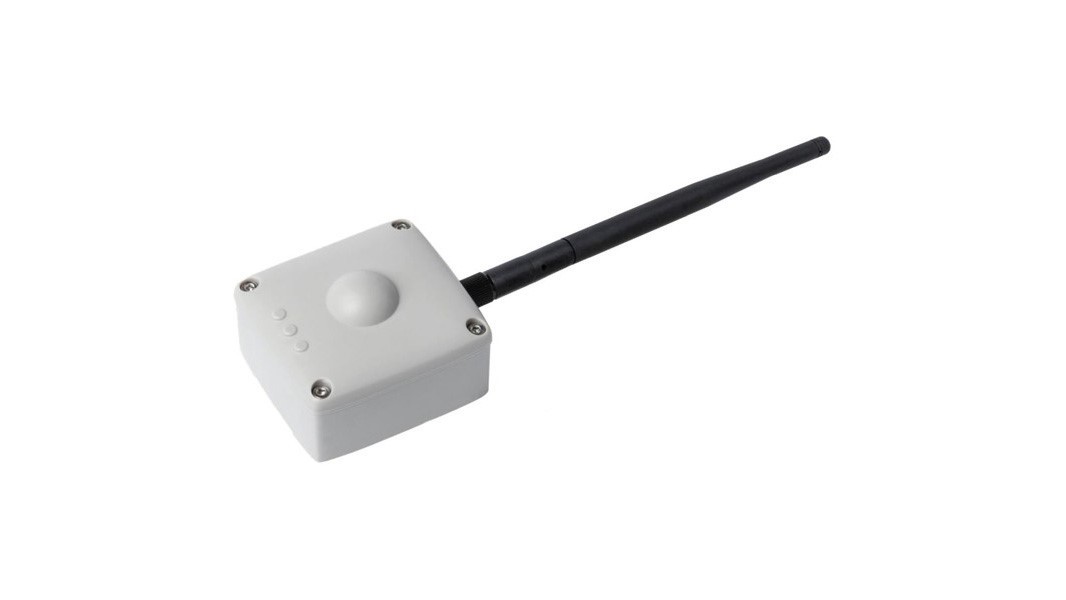

This device is able to determine the level of different materials both inside containers and in the open air. The long battery life, low cost, small size and robust construction make it an ideal sensor for endless applications, from agriculture to meteorology, from industry to craftsmanship. Water and other liquids, powders, glass, plastic, grains, snow, paper, fruit... materials of different consistency and composition can be monitored remotely (even through walls), significantly reducing control and maintenance costs. The device comes with an external antenna for better reception.
- CPU ARM Cortex M4
- Class A LoRaWAN 1.0.2, EU868
- OTAA/ABP activation
- Level range 350 ÷ 7000 mm, resolution 1 mm
- External antenna
- Magnetic start-up
- Embedded accelerometer for tilt status**
- Primary battery with no harmful substances, replacement possible
- 5 years life time with SF12 and max Tx power, 48 Uplinks messages per day
- Transmission @ 868 MHz, 14 dBm max.
- Remote configuration**
- Storage temperature -30 °C ÷ +80 °C
- Working temperature -30 °C ÷ +65 °C
**planned
