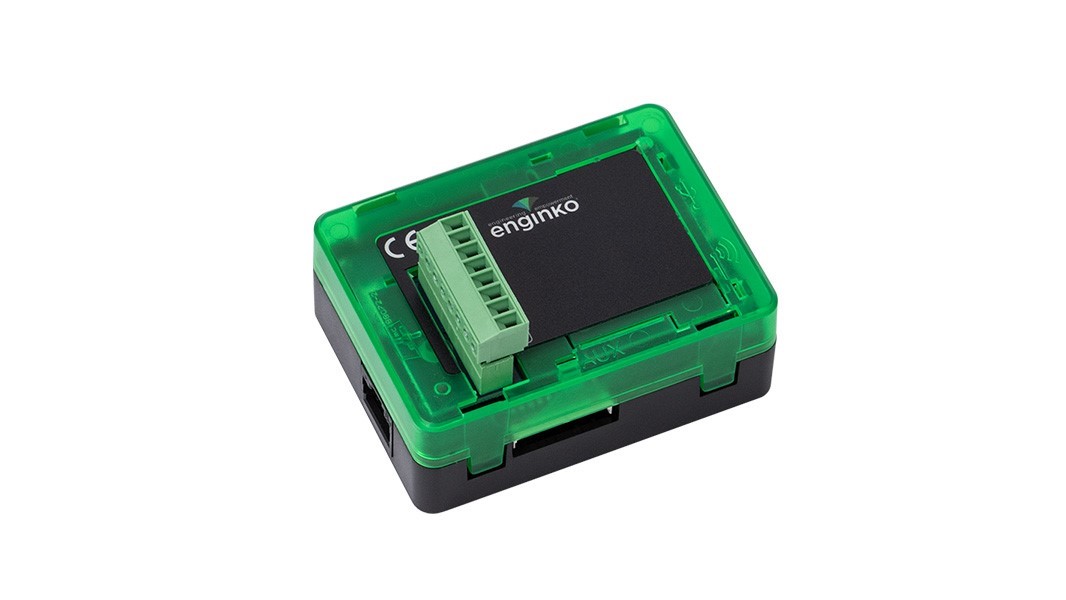

This interface has four 4-20 mA opto isolated input channels, useful to connect any kind of analog sensor and to forward measurements to the LoRaWAN platform.
- Class C LoRaWAN
- 4 analog current inputs 4-20 mA 12bits with disconnect alarm
- IoT node setup ad firmware upgrade via USB interface
- Encryption AES 128 bit
- LiPo rechargeable battery
- 1000Vdc isolated analog inputs
- Power supply 10-36 V DC
- Storage temperature range -20 + 80 °C
- Working temperature range -10 + 70 °C
Product Specification
